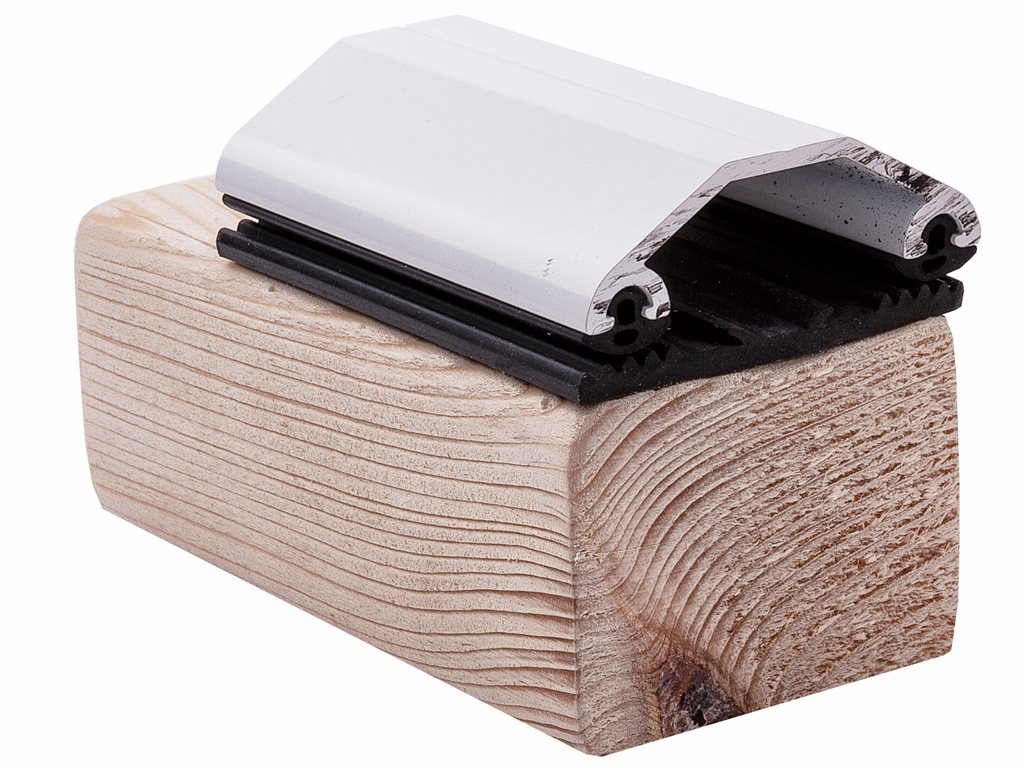

The P501 rafter glazing bar system is a narrower version of the P261 bar used for installing multiwall and solid polycarbonate as well as glass. Designed to sit on rafters with a minimum width of 50mm it consists of a 50mm wide gasket that is attached to the rafter using galvanised nails (not supplied) every 300mm along its length and a screw-down aluminium capping bar fitted with bubble gaskets that should be screwed down every 300-350mm. Plastic screw-cover caps should be used when fitting the capping bar. A polycarbonate push fit end plate finishes off each bar.
When installing glass we recommend replacing the standard end plates with an aluminium mechanical end plate. Your glass supplier will give you advice regarding recommended rafter sizes and glazing centres.
This bar system is stocked as individual packs in white & brown in a range lengths.
Additional individual end plates are also available separately.
If you have a project in mind or would like help or advice on any of our products or services, please either ring us on 01925 826314, email us at [email protected] or get in touch via the enquiry form on our contact page.
