The P227 is a two-part 60mm wide short-span structural glazing bar system designed for installing both multiwall and solid polycarbonate as well as glass. When glazing multiwall polycarbonate it can span up to 1.5m between fixing points. For longer roofs the use of additional intermediate purlins provides extra fixing points.

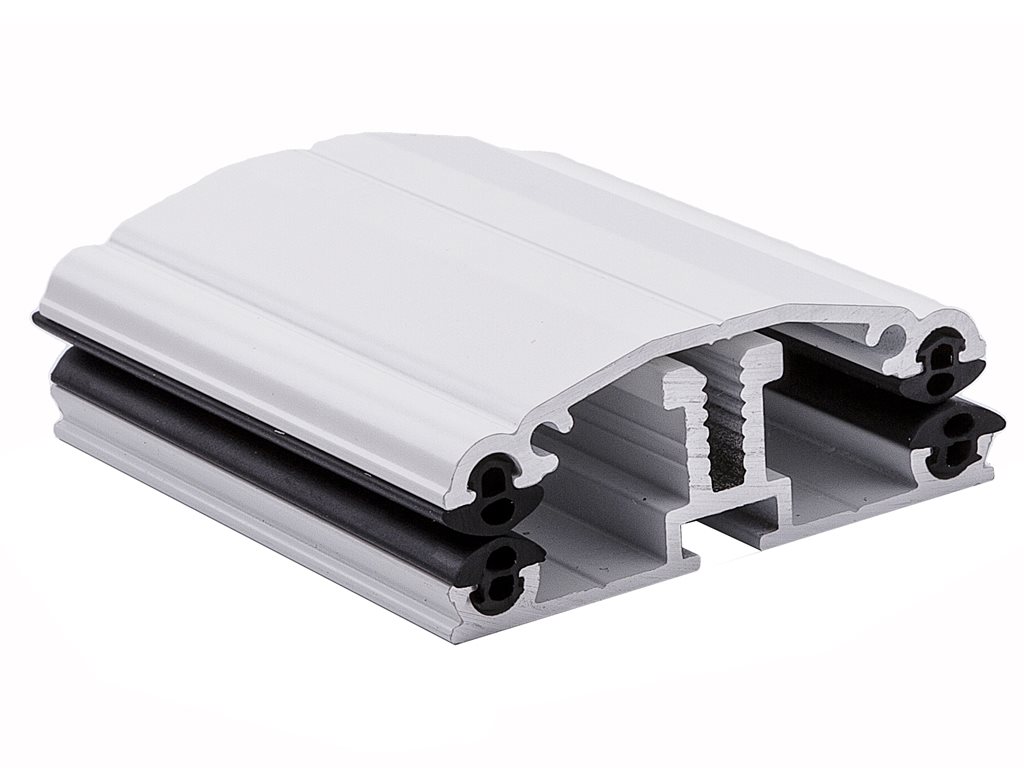

The P227 glazing bar system consists of a 60mm wide aluminium base bar complete with bubble gaskets, a 60mm wide screw-on aluminium capping bar complete with bubble gaskets and one end plate per pack.
The base bar should be fixed to its supports top, middle and bottom, the glazing faced up and the capping bar screwed into place. Plastic screw cover caps give a neat finish.
This glazing bar system is stocked as individual packs in white, brown & anthracite grey (RAL7016) in a range of lengths.
Additional individual end plates are also available separately.
If you have a project in mind or would like help or advice on any of our products or services, please either ring us on 01925 826314, email us at [email protected] or get in touch via the enquiry form on our contact page.
